Real-Time Video/Vision Pipelines for Multimodal AI

Multimodal AI has completely shifted the landscape of what we can build. When Large Multimodal Models (LMMs) gained the ability to natively understand sequential video frames and audio, developers immediately started dreaming up applications: real-time security analysis, autonomous drone navigation, and live sports commentary engines.

But there is a massive gap between uploading an MP4 file to a web UI and building a production-grade, real-time video ingestion pipeline. If you naively take a 4K 60fps video stream and try to fire it sequentially into an API endpoint, your infrastructure will choke. Your network I/O will saturate, your cloud bill will explode, and your latency will be measured in minutes, not milliseconds.

To build a real-time vision pipeline, you have to stop treating video as a file and start treating it as a highly volatile stream of discrete, compressible states. Today, we are going to architect a low-latency, continuous video ingestion pipeline that can plug into any major multimodal API.

The Anti-Pattern: The Polling Upload

The most common mistake engineers make is treating video analysis like an asynchronous batch job. They capture a 5-second clip, write it to disk, upload it to cloud storage (like S3 or GCS), wait for the URI, pass the URI to the model API, wait for the inference, and then repeat.

This architecture is dead on arrival for real-time use cases. The disk write latency, the network transfer time to cloud storage, and the cold-start inference time compound drastically. By the time you get an answer about what happened in seconds 1-5, the physical world is already at second 15.

The Architecture: WebSockets and Frame Buffers

To achieve real-time performance, you must eliminate disk writes and HTTP polling. You need a persistent connection and a continuous stream of data in memory.

The architecture consists of three core components:

1. The Edge Client (Camera/Device): Captures video and performs aggressive downsampling.
2. The Ingestion Server: Maintains a WebSocket connection with the client, buffers frames, and manages API rate limits.
3. The Multimodal LLM Backend: Receives chunked frame data and maintains temporal context.

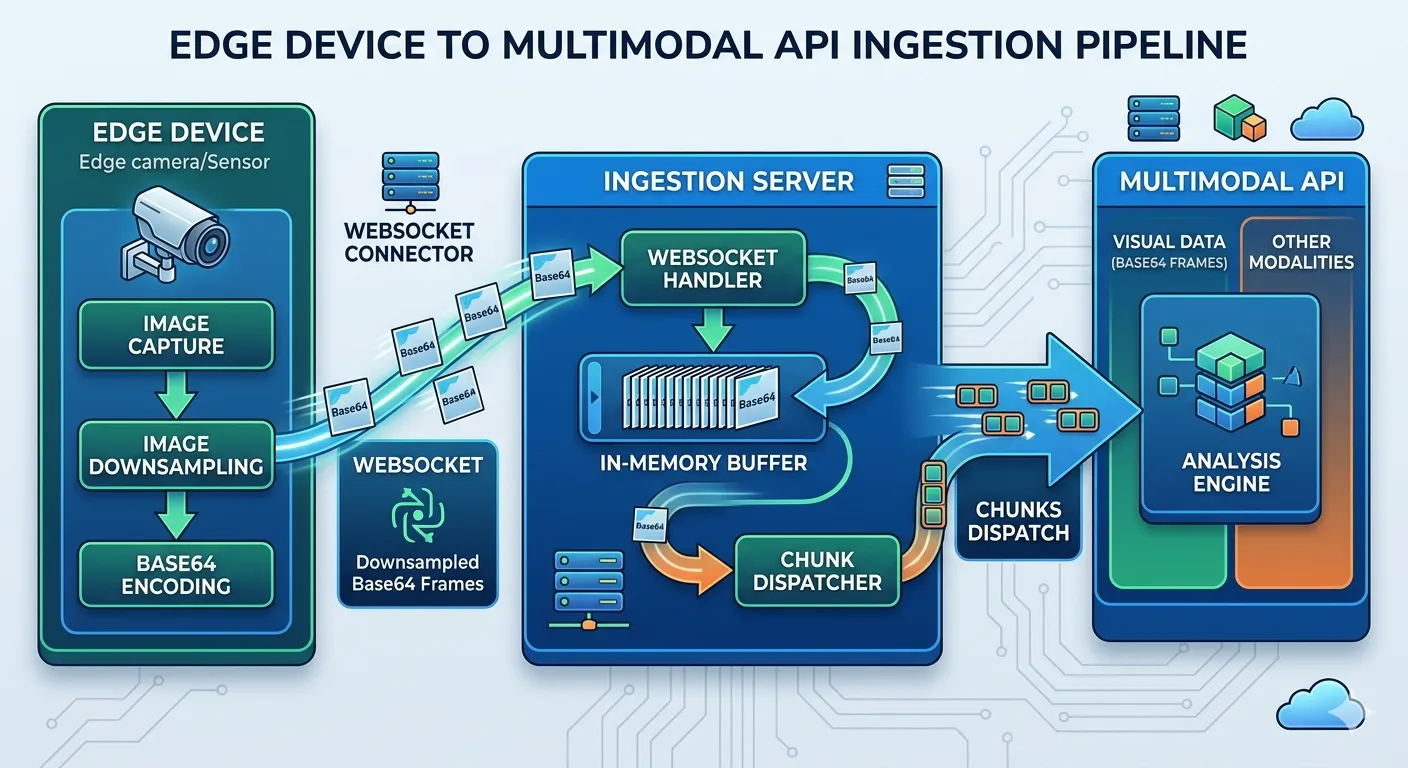

Explainer Diagram: An architecture flow illustrating the Edge Client sending downsampled base64 frames over a WebSocket to an Ingestion Server. The server buffers these frames and dispatches them in optimized chunks to the multimodal API, maintaining a continuous dual-loop system.

Step 1: Edge-Side Extraction

You absolutely cannot send 60 frames per second over the wire. LMMs do not need 60 frames to understand that a person walked across a room. They usually need 1 or 2 frames per second.

The edge device must extract frames dynamically. Using a lightweight tool like FFmpeg or OpenCV in memory, you extract exactly 1 frame per second. You then downscale the resolution. 4K is useless overhead for current models; 720p or even 480p is almost always sufficient for semantic understanding. Finally, you convert that single frame to a base64 encoded JPEG.

You have just reduced a 20MB/s video stream to a 150KB/s trickle of JPEGs.

Step 2: The Ingestion Buffer

The edge device streams these base64 frames over a persistent WebSocket to your ingestion server. The ingestion server does not immediately forward every frame to the LMM API. If you hit the API every second, you will instantly trigger HTTP 429 Too Many Requests errors and blow your token limits.

Instead, your ingestion server maintains an in-memory buffer (e.g., using Redis or a simple Python deque). It runs a dual-loop system.

The first loop is the receiver, constantly pushing incoming frames into the right side of the queue. The second loop is the dispatcher. Every N seconds (e.g., every 5 seconds), the dispatcher pops the last 5 frames from the queue, packages them into a single multimodal payload array, and fires an asynchronous request to the LLM backend.

# Conceptual dispatcher loop on the ingestion server
async def dispatch_to_api(frame_buffer, prompt):
    while True:
        await asyncio.sleep(5) # Dispatch every 5 seconds

        if len(frame_buffer) >= 5:
            # Pop the oldest 5 frames
            chunk = [frame_buffer.popleft() for _ in range(5)]

            # Format for the generic Multimodal API
            contents = [
                {"role": "user", "parts": [{"text": prompt}]}
            ]
            for frame_b64 in chunk:
                contents[0]["parts"].append({
                    "inline_data": {"mime_type": "image/jpeg", "data": frame_b64}
                })

            # Fire async request (non-blocking)
            asyncio.create_task(call_multimodal_api(contents))

Step 3: Maintaining Temporal Context

Here is where the magic happens. If you just send 5 frames in isolation, the model has no idea what happened in the previous 5 seconds. To maintain a continuous understanding of the event, you must utilize the model’s chat history or context window.

When the API returns an analysis of the first chunk (“A red car entered the frame”), you append that response to the conversation history. When you send the next 5 frames, you send them along with the previous text analysis. The model now knows: “The red car is still there, but now a person is getting out.”

You are using the text output of the previous chunk as the semantic bridge to the next chunk. This keeps your token usage incredibly low because you are not resending old images; you are only sending new images and a few paragraphs of text history.

The Infrastructure Reality

Building this requires a profound respect for network physics. You must manage WebSocket lifecycles, handle dropped connections gracefully, and tune your frame extraction rates based on the available bandwidth.

If you just treat the API as a magic box that solves video, your system will collapse under load. But if you architect your pipeline with rigorous buffers, aggressive downsampling, and persistent state management, you can achieve sub-second latency on continuous video streams, unlocking an entirely new class of autonomous applications.
