The Real Performance Improvement Rate of AI Training Chips
Analyze the actual performance improvement rate of training chips and GPUs vs marketing hype. Here is the data on real compute scaling for training and inference.

Note
Key Takeaways:
- Real Performance Gains are Measured: While headlines promise 100x leaps, top-tier AI training chips deliver closer to 3x to 4x faster training speeds in practice.
- Inference is the Real Winner: The real economic unlock is in inference, with up to 50x better performance enabling complex agentic reasoning loops.
- The Memory Wall is the Real Bottleneck: Scaling is no longer just about math speed (FLOPs); it is bound by memory bandwidth and software co-design.
The Reality of AI Compute Scaling
If you follow the tech press, every new chip generation is a “revolution.” We are promised 10x, 100x, or even 1000x improvements in every headline. But as we move deeper into the era of trillion-parameter models and autonomous agents, we need to separate the marketing hyperbole from the engineering reality.
What is the actual performance improvement rate of contemporary AI training chips? Specifically, how does the state of the art stack up against the workhorse generations it replaces?
The numbers are impressive, but the story is more nuanced than simple multiples. We need to look at the physics of the metal, not just the marketing brochures.
The Real Numbers: A Case Study in Scaling
In my work analyzing cluster deployments, the real-world benchmarks and deployment data on advanced systems like NVIDIA’s Blackwell architecture compared to the previous Hopper generation show what the transition actually looks like in practice.
1. Training Speed: The 3x Reality
For large-scale AI training (the kind required for frontier models), top-tier systems are delivering up to 3.2x faster training performance compared to optimized previous-generation systems at the same GPU count. With the inclusion of ultra-tier components, cumulative performance gains have been reported as high as 4.2x.
This is a massive leap for a single generation, but it is not the 10x the headlines might suggest. It means a training run that took 3 months on the previous generation might take about 3 to 4 weeks on the new hardware. Significant, but still a measured evolution.
2. Performance Per Dollar: The 2x Shift
Raw speed is only half the story. The other half is cost. The performance gains of the new architecture outpace the increase in hourly instance pricing, leading to nearly 2x the training performance-per-dollar compared to the past. This is the metric that CFOs care about: you are getting twice the work done for the same spend.
3. The Inference Leap: Up to 50x
Where the numbers get truly wild is in inference, particularly for the complex reasoning loops required by Agentic AI. For these workloads, specific benchmark reports indicate up to 50x better performance and significantly lower costs (up to 35x lower) compared to the older platforms.
This is the key to unlocking the transition from reactive chatbots to proactive agentic systems. You cannot run a system of autonomous agents constantly querying a model if inference costs are prohibitive. The new hardware makes that architecture economically viable.
The Google Alternative: The TPU Paradigm
While the market often defaults to discussing specific dominant chips, understanding the full landscape requires looking at alternative architectures. Google’s Tensor Processing Units (TPUs) offer a distinct approach to the compute scaling problem.
Instead of the general-purpose nature of traditional GPUs, TPUs are application-specific integrated circuits (ASICs) designed from the ground up for the matrix multiplication operations that dominate neural network training.
Systolic Arrays vs. SIMT
The core difference lies in the architecture. Traditional GPUs use a SIMT (Single Instruction, Multiple Threads) model. They are massive arrays of small processors designed to handle many tasks in parallel. This makes them highly flexible but introduces overhead in instruction fetching and data movement.
TPUs use a Systolic Array architecture. In a systolic array, data flows through the grid of processing units like blood through a vascular system (hence the name). Each unit performs a calculation and passes the data to the next unit without waiting for a central memory access. This minimizes the “von Neumann bottleneck” (the delay caused by moving data between memory and processing) and maximizes throughput for matrix operations.
On Google Cloud, primitives like TPU v5p and the newer Trillium chips represent this approach. They trade some of the general-purpose flexibility of a GPU for sheer efficiency in matrix math. For organizations running massive transformer models, this design can offer significant cost and energy advantages. For a deep dive into how specialized TPU silicon like SparseCore handles memory-intensive workloads, see my article on Scaling Recommendations with TPU SparseCore.
Trillium, Google’s latest TPU generation, focuses heavily on this multi-node scaling problem. It quadruples the high-bandwidth memory (HBM) capacity and doubles the Inter-Chip Interconnect (ICI) bandwidth compared to previous generations. This is not just about making the chip faster; it’s about making the cluster larger and more efficient at handling the communication overhead that kills scaling efficiency in trillion-parameter models.

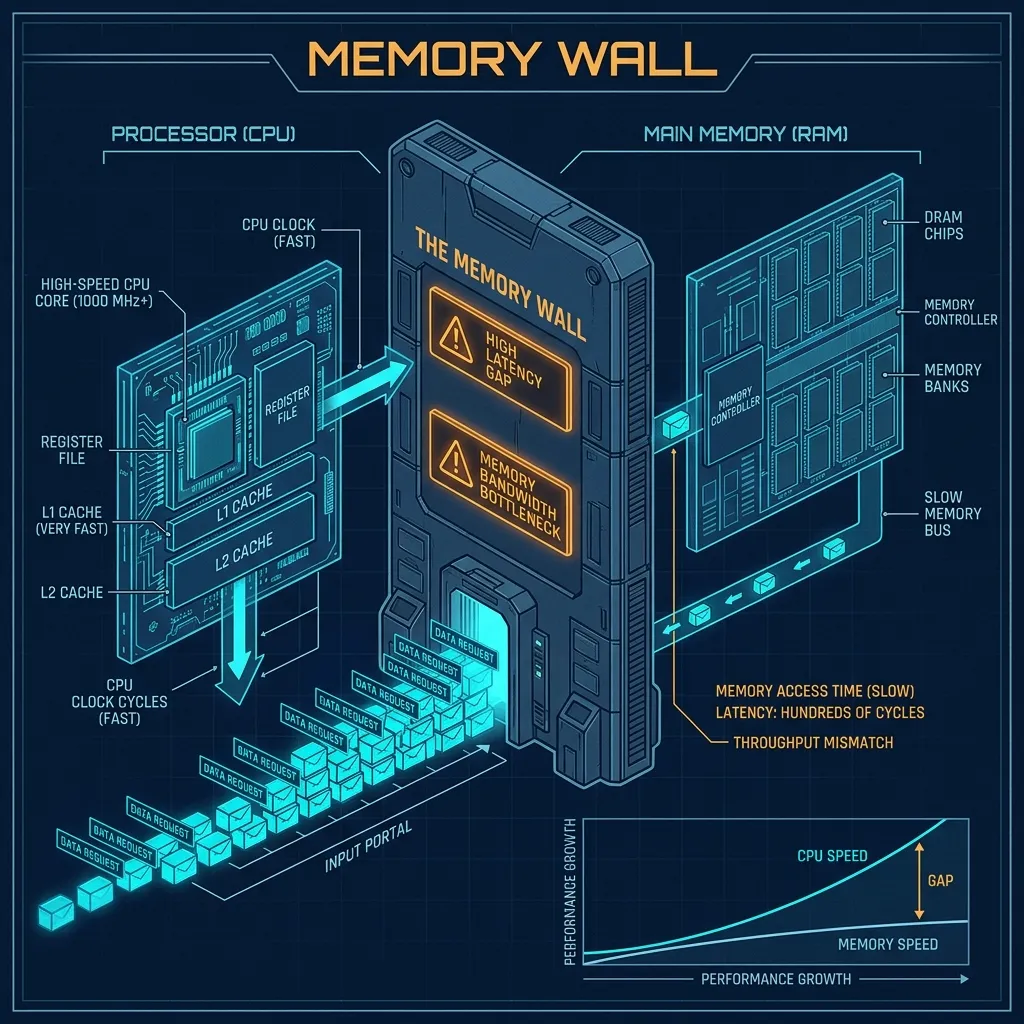

🧠 The Memory Wall: Why FLOPs Lie
When evaluating compute scaling, we must avoid the trap of looking only at peak FLOPs (Floating Point Operations Per Second). FLOPs measure how fast the processor can calculate, but they do not measure how fast the processor can get data to calculate on.
We are hitting the Memory Wall.

Processor speeds are increasing much faster than memory access speeds. A chip can have the capability to perform a quadrillion operations per second, but if it spends half its time waiting for data to arrive from memory, that capability is wasted.
This is why memory technologies like HBM3e (High Bandwidth Memory) are so critical. To understand why HBM is so critical, look at how traditional systems move data. In standard architectures, processing chips and memory chips are placed side-by-side on a board. Data has to travel across the circuit board, which introduces latency and power consumption.
HBM solves this by stacking memory dies vertically directly on top of the interposer, right next to the compute silicon. This creates a massive, short-distance data highway with thousands of traces, delivering Terabytes per second of bandwidth. The real differentiator in modern compute scaling is not the math speed; it is the memory bandwidth.
If your infrastructure strategy focuses only on peak Petaflops without looking at the memory bandwidth (measured in Terabytes per second), you are buying a sports car to sit in traffic.
The Software Moat: Compilation and Co-Design
The final piece of the scaling puzzle is software. Hardware is useless without a compiler that knows how to use it.
This is where the concept of hardware-software co-design becomes dominant. You cannot design the file system and the operating system separately anymore.
On the Google stack, the XLA (Accelerated Linear Algebra) compiler is the secret sauce. XLA takes models defined in frameworks like TensorFlow, JAX, or PyTorch and compiles them specifically for the target TPU or GPU. It fuses operations, eliminates intermediate memory storage, and optimizes the execution graph to match the specific hardware topology.
The friction often lies in the translation layer. PyTorch has become the default language for AI researchers, but compiling PyTorch for TPUs traditionally required complex translation. The shift has been to make this integration seamless. When an engineer writes PyTorch code, the compiler should automatically handle the tiling and layout optimization for the systolic array without the developer needing to know the low-level architecture.
Without a smart compiler, even the fastest systolic array or GPU cluster will run inefficiently. The software stack is becoming the real moat in AI compute.
The Strategic Takeaway
Stop asking if a model is “smart enough.” Start asking if your infrastructure is fast and cheap enough to let agents think in loops.
Compute scaling is not about magical performance leaps described in marketing brochures. It is about targeted acceleration (specifically in inference and lower-precision math like 4-bit floating point) and overcoming the physics of data movement.
As software leaders, we are transitioning from being players in the loop to coaches of multi-agent systems. This requires a shift in how we evaluate technology. We can no longer just look at model accuracy on static benchmarks. We must evaluate the end-to-end system latency and cost of a reasoning loop. If a model takes 10 seconds to respond and costs 5 cents per turn, it cannot participate effectively in a complex, multi-agent debate or a long-running research task.
The infrastructure you choose determines the limits of your agentic potential. If you build on a stack optimized for old batch-processing models, your agents will be slow and expensive. But if you build on a stack that embraces systolic arrays, optimized memory bandwidth, and seamless compilation, you enable a new class of applications. You enable systems that can self-correct, cross-verify, and execute tasks with a speed that approaches human intuition.
Review your infrastructure strategy. If you are still optimizing for the costs of previous-generation inference, you are planning for a past that no longer exists. Build for execution velocity, focus on memory bandwidth over raw FLOPs, and ensure your software stack can actually leverage the metal you are paying for.
The transition to agentic workflows is not a choice; it is the inevitable destination of software engineering. Those who build on the right infrastructure today will be the owners of the systems that define tomorrow. Do not wait for the perfect model to arrive. Start architecting your context, your software co-design, and your compute strategy now.
